龙门架

一、产品概述

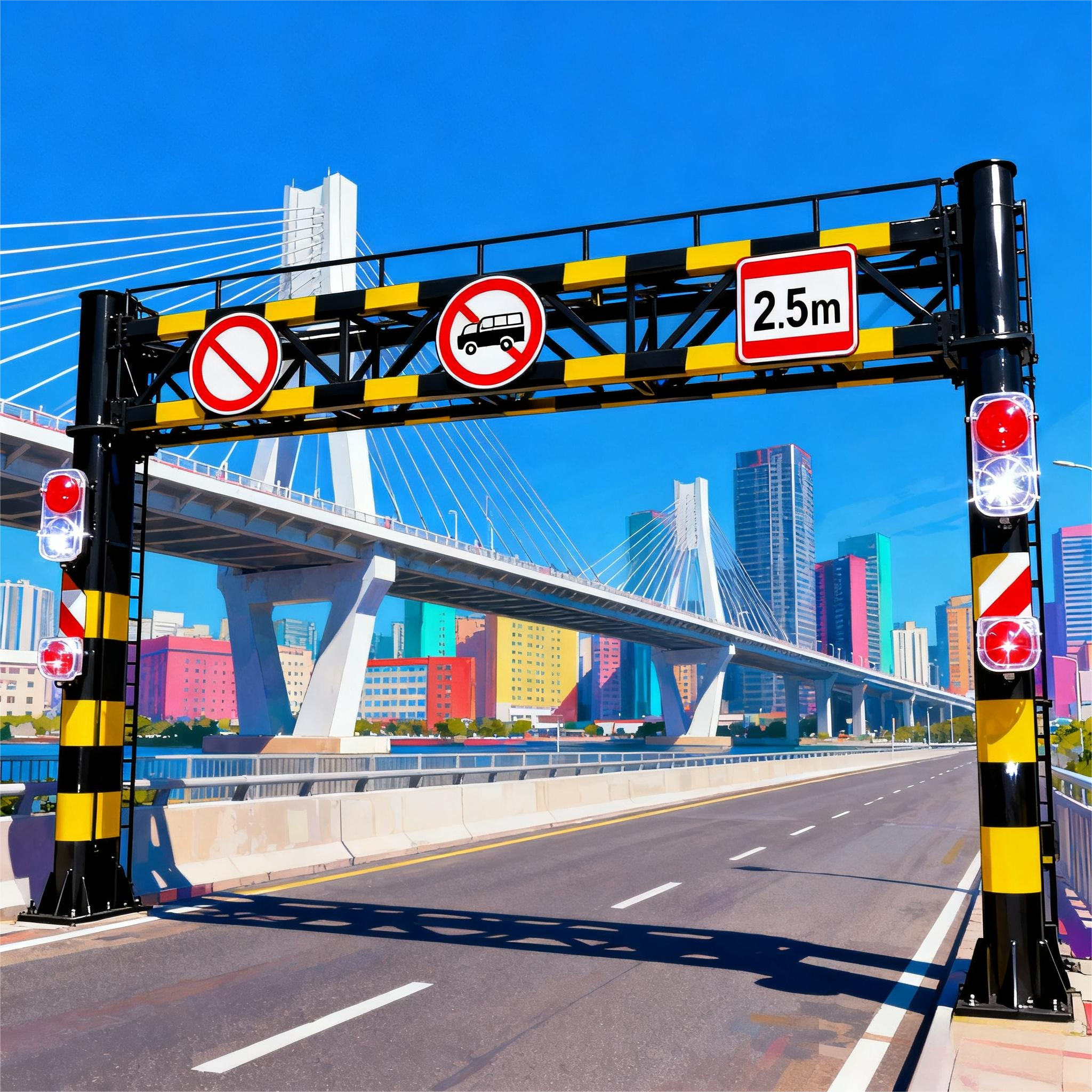

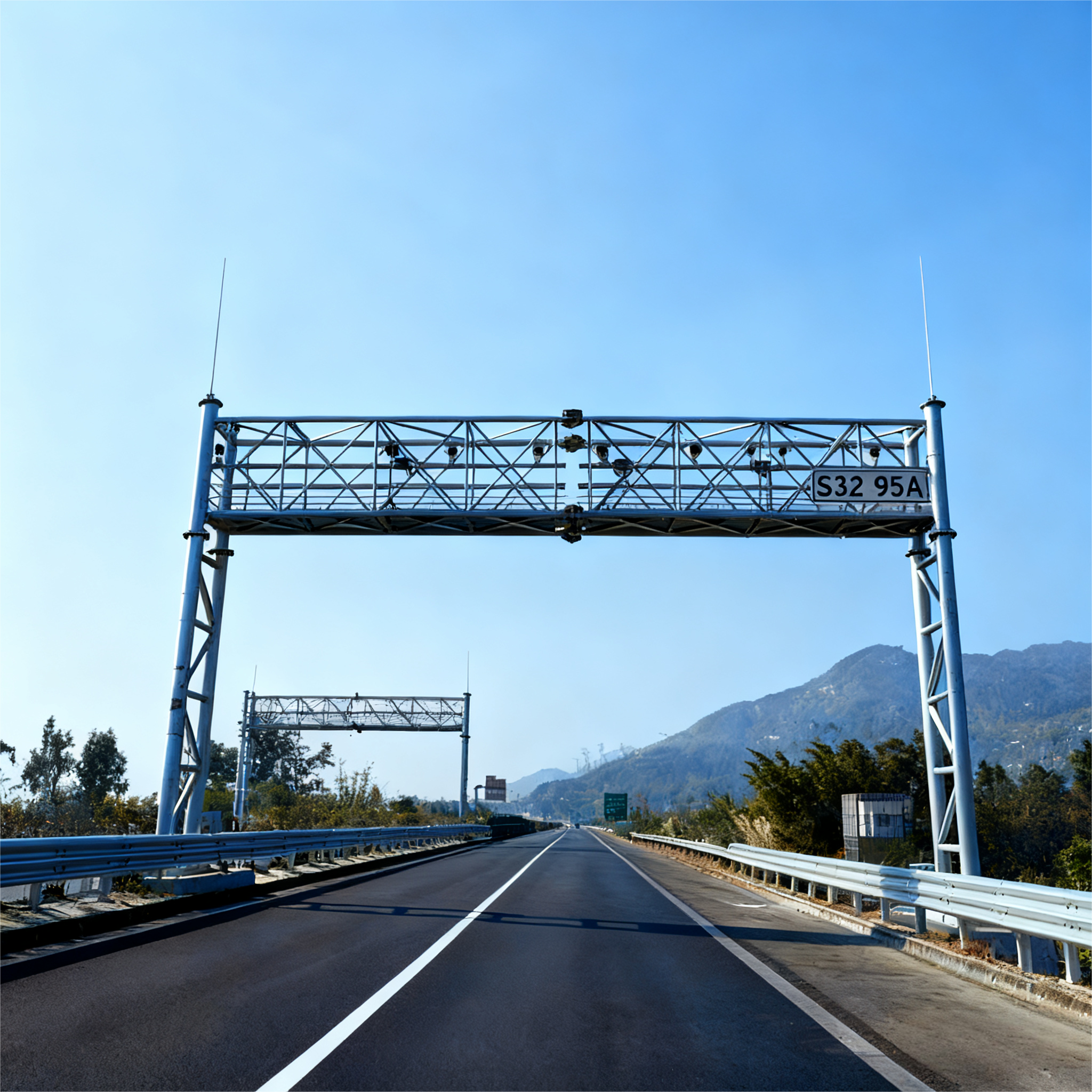

交通龙门架（跨路限高龙门架）为门式钢结构金属构件，横跨市政道路、国道、高速公路，集行车限高防护、交通信息发布、视频监控、ETC 抓拍多功能于一体，是智慧交通路侧核心基础设施。产品整体工厂预制焊接，现场吊装安装，可根据车道宽度、荷载、风压非标定制，满足多车道道路使用需求。

二、核心材质与工艺

1. 主材：Q235B / Q355B 国标碳素结构钢，采用钢管、桁架式横梁结构，焊缝满焊打磨，强度高，承重稳定，可承载大型 LED 显示屏、摄像机组等设备。
2. 防腐处理：热浸镀锌 + 静电喷塑双重防腐，锌层厚度≥85μm，抗雨水、盐碱、紫外线腐蚀，户外使用寿命可达 15 年以上；紧固件全部热镀锌防锈处理。

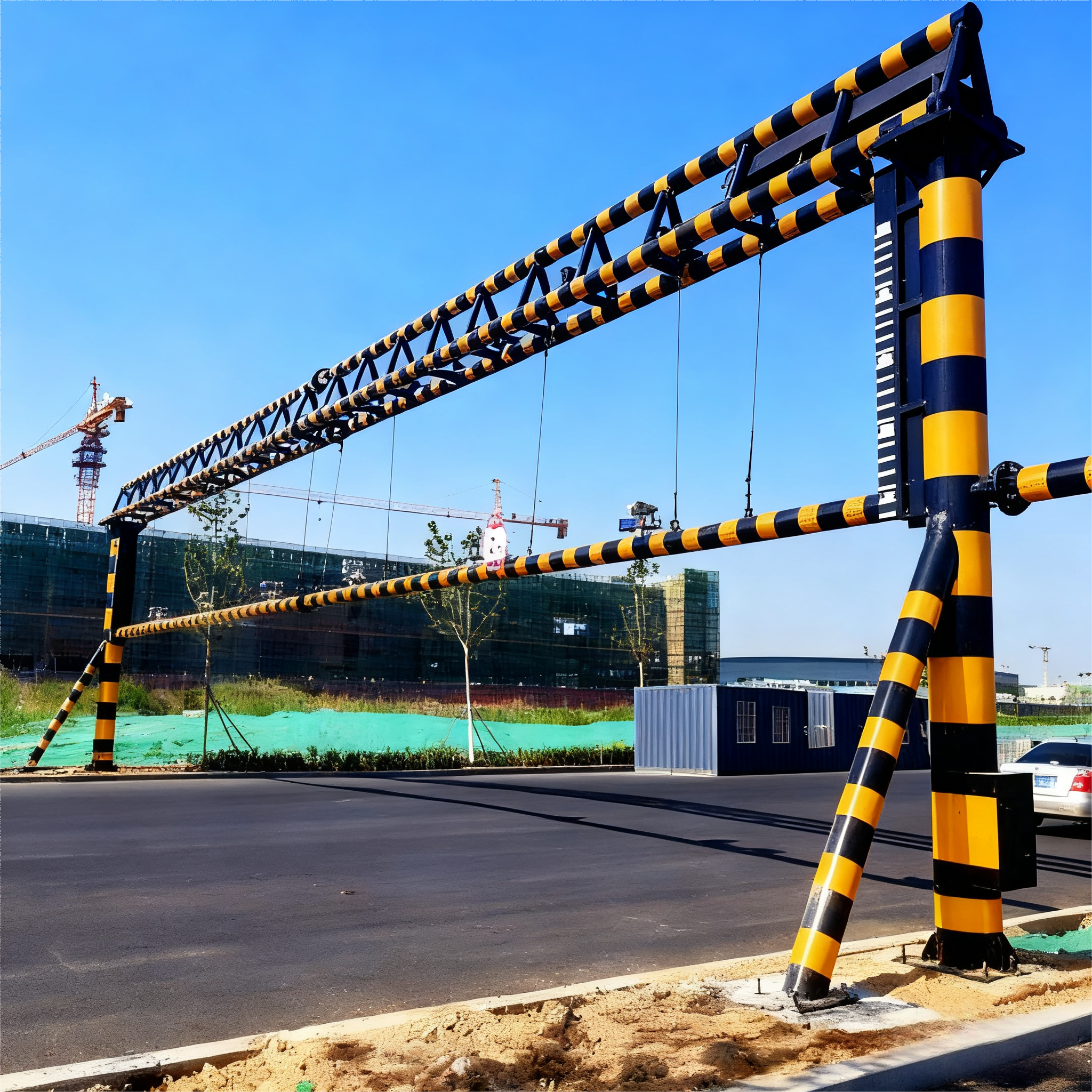

3. 结构：桁架式横梁，力学结构优异，抗风等级≥12 级，可承受强风荷载；配套法兰盘、地脚螺栓，混凝土基础固定，安装稳固。

三、产品参数（可按需修改）

• 跨路跨度：6–40m，适配 2~6 车道，按道路宽度定制

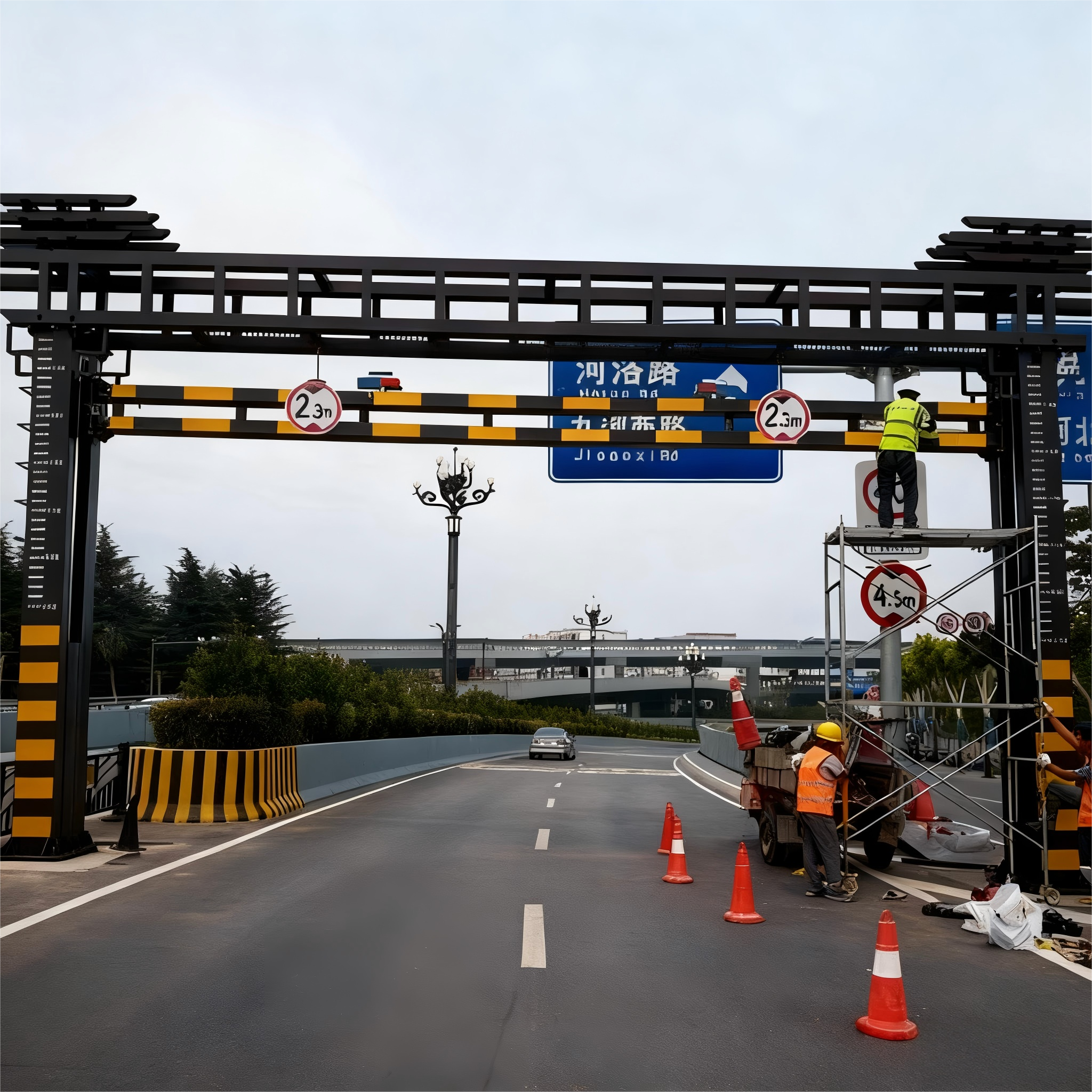

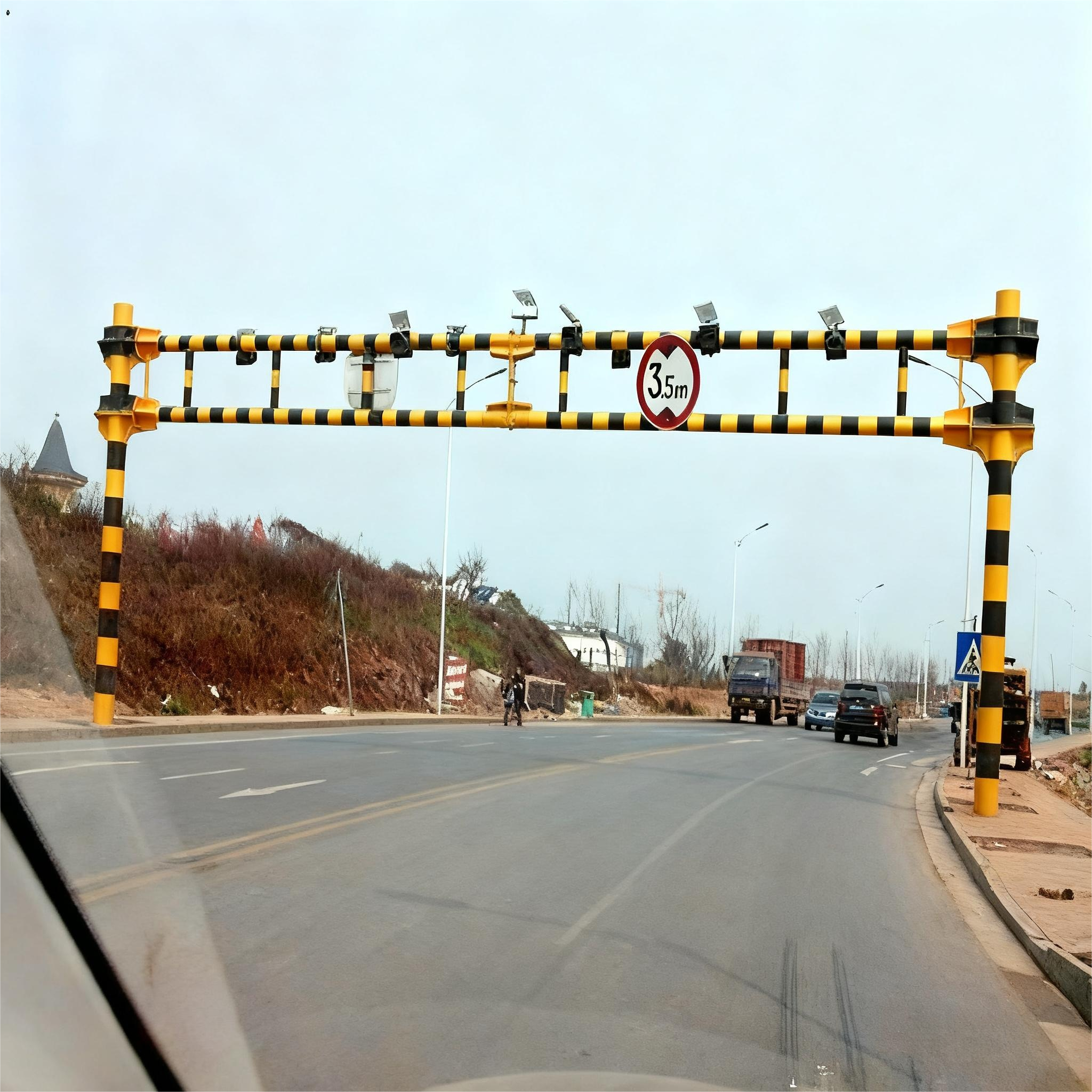

• 行车净空高度（限高）：常规 5.0–7.5m，满足大型货车通行要求

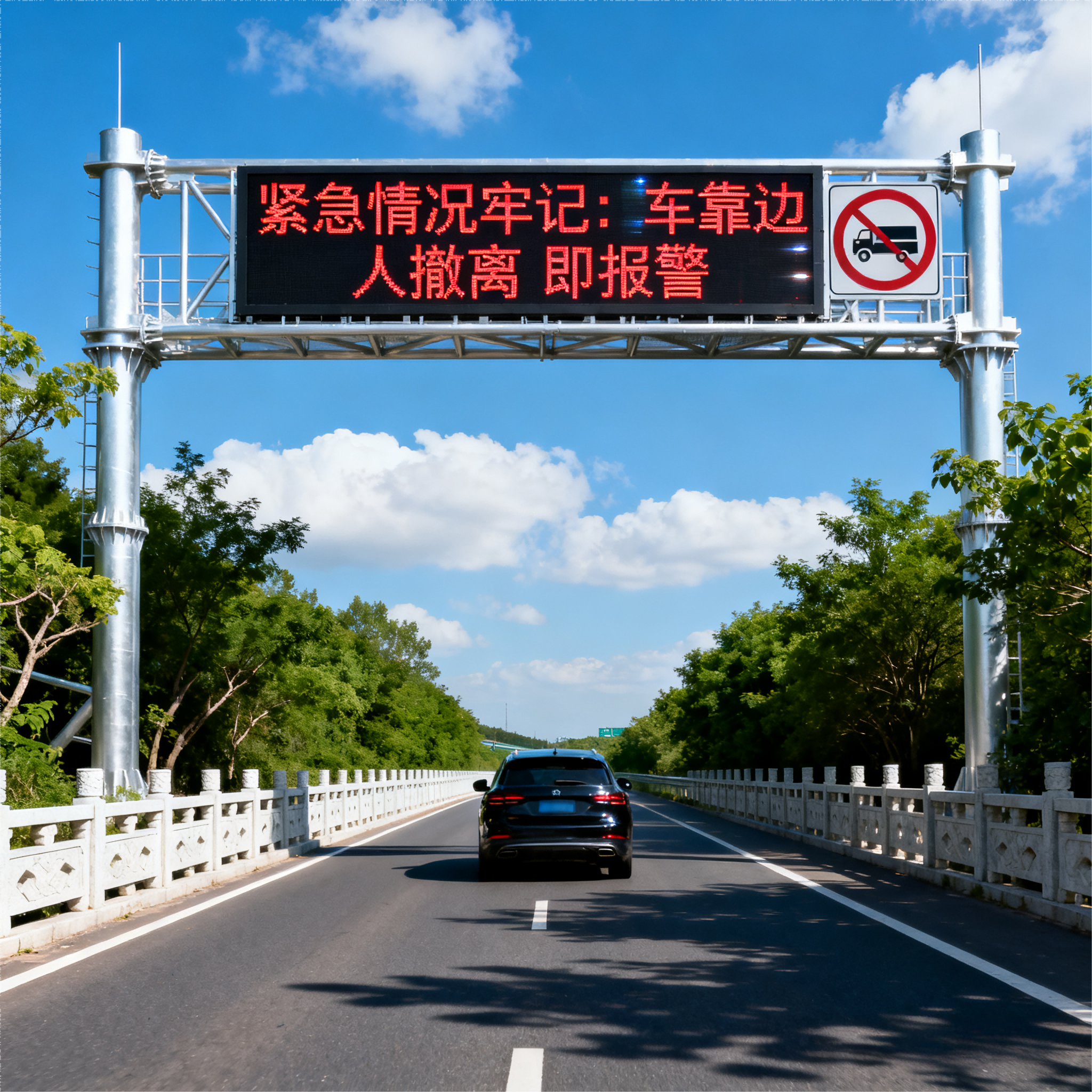

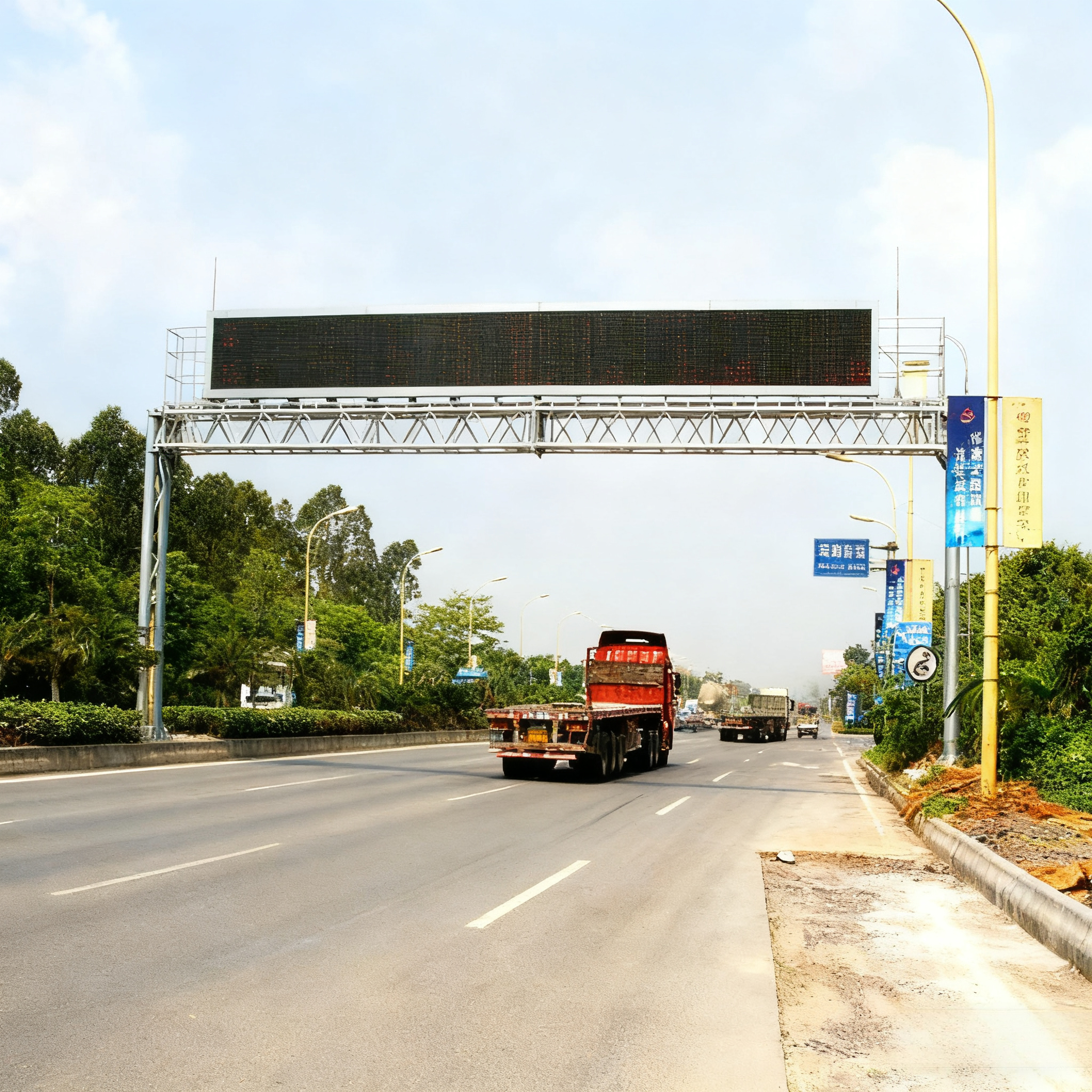

• 挂载能力：可搭载 LED 交通诱导屏、高清监控摄像头、雷达、ETC 天线、交通标志、限高警示牌
• 表面颜色：银灰 / 浅灰（可定制其他颜色）
• 适用场景：高速公路、城市快速路、国道省道、园区出入口、隧道口

四、产品优势

✅ 多功能集成：一套门架同时实现限高防护、路况信息播报、车辆抓拍、ETC 识别，减少重复立杆，降低项目成本。

✅ 高强度耐用：桁架钢结构，抗压抗风，适合户外全天候环境，雨雪、高温、沿海腐蚀环境均可使用。

✅ 非标定制：可根据道路勘测数据，定制跨度、净空、挂载设备布局，配套设计图纸、基础施工图。

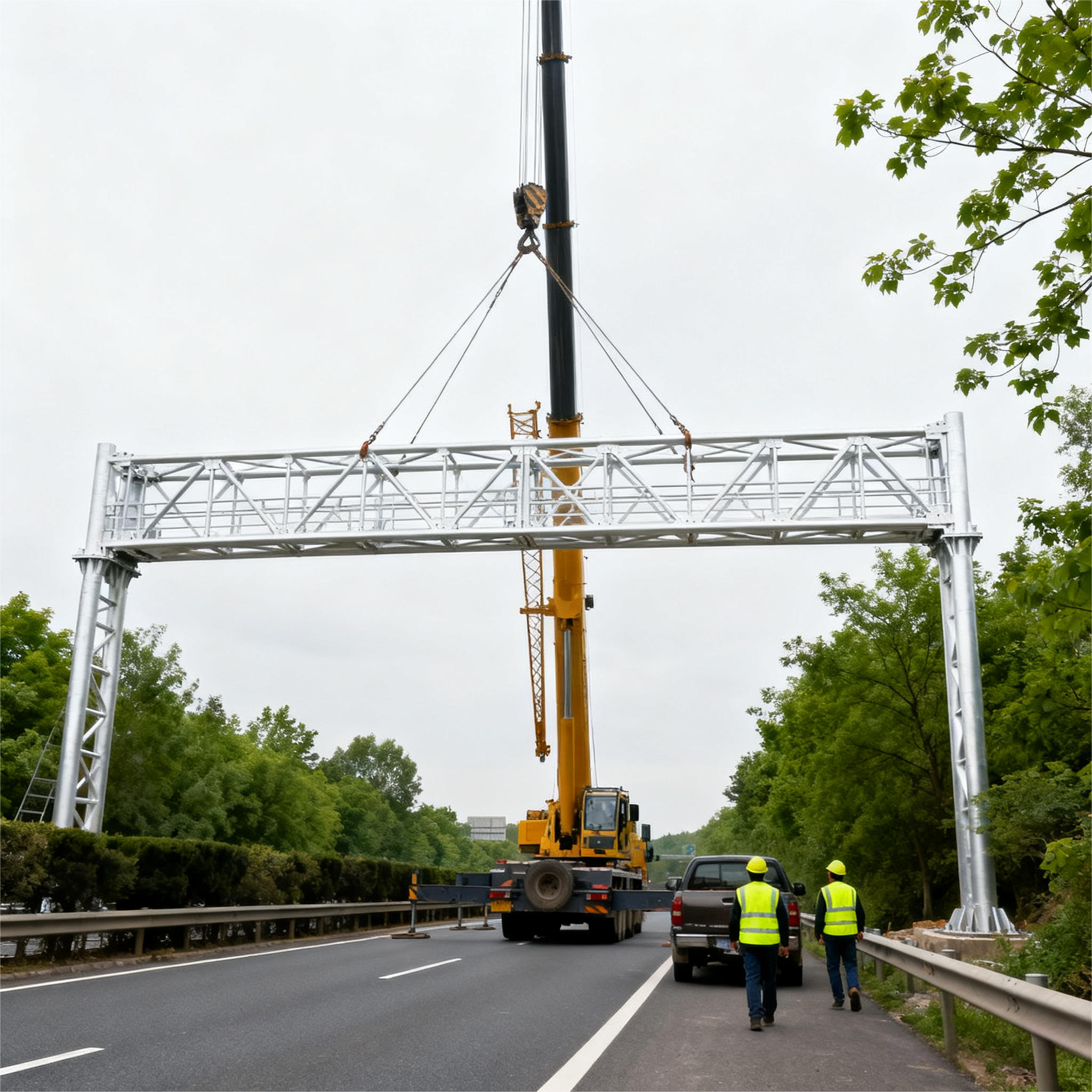

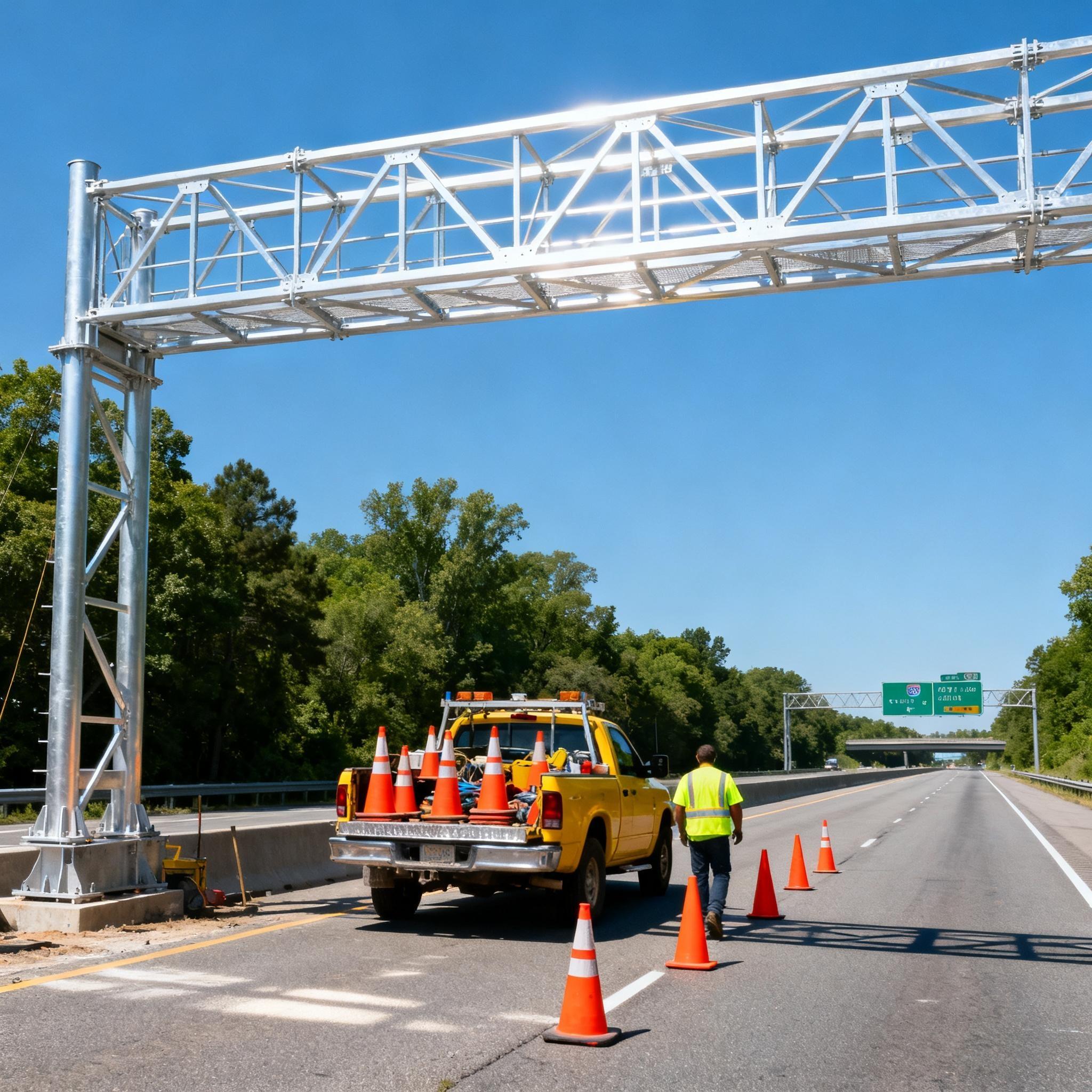

✅ 施工便捷：工厂整体加工预制，现场直接吊装，缩短工期；后期维护简单，便于检修屏体与监控设备。

✅ 安全合规：严格按照道路交通钢结构设计规范生产，满足路政、交管项目验收标准，可用于政府采购、招投标项目。

五、应用场景

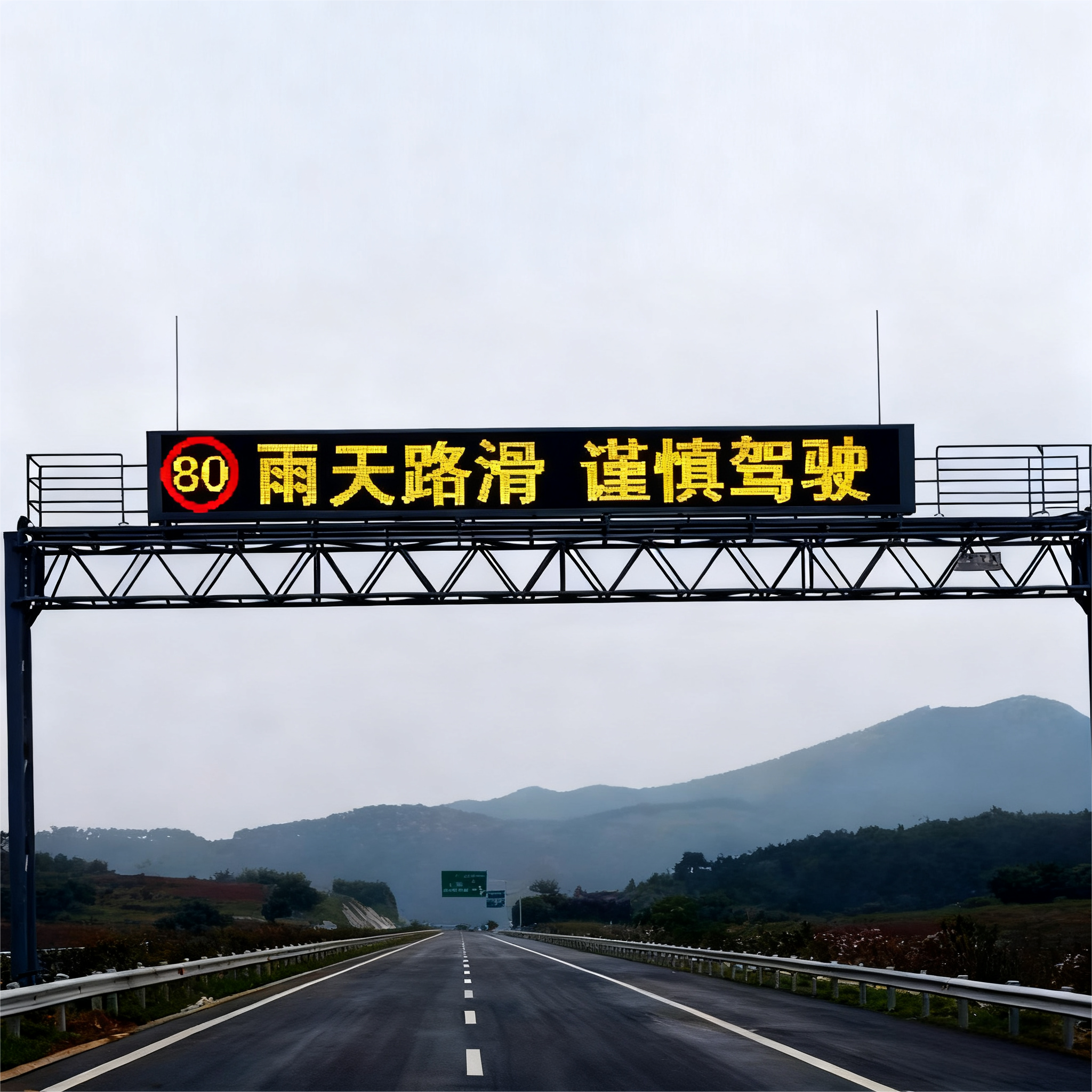

高速公路主线及匝道、城市快速干道、国省干线、隧道出入口、大型园区主干道。用于发布拥堵预警、施工提示、限速提示，同时做道路限高管控、车辆违法抓拍、ETC 收费识别。

1. Product Overview

Traffic gantry (cross-road height-limiting gantry) is a portal-type steel structural metal component spanning municipal roads, national highways and expressways. It integrates multiple functions including vehicle height limit protection, traffic information release, video surveillance and ETC capture, serving as core roadside infrastructure for smart transportation. The product is prefabricated and welded in the factory and installed by hoisting on site. Customized non-standard solutions are available according to lane width, load and wind pressure to meet the usage requirements of multi-lane roads.

2. Core Materials & Manufacturing Process

Main Material: Q235B / Q355B national standard carbon structural steel. Adopting steel pipe and truss beam structure with full welding and polished welds, featuring high strength and stable load-bearing capacity, capable of supporting large LED display screens, camera groups and other equipment.

Anti-corrosion Treatment: Dual anti-corrosion treatment of hot-dip galvanizing plus electrostatic powder coating. The zinc layer thickness ≥85μm, resisting corrosion from rainwater, salt-alkali and ultraviolet rays, with an outdoor service life of over 15 years. All fasteners are hot-dip galvanized for rust prevention.

Structure: Truss-type crossbeam with excellent mechanical performance. Wind resistance rating ≥Level 12 to withstand strong wind loads. Equipped with flange plates and anchor bolts, fixed on concrete foundation for stable installation.

3. Product Parameters (adjustable as required)

• Span across road: 6–40m, suitable for 2~6 lanes, customized according to road width
• Vertical clearance (height limit): 5.0–7.5m normally, meeting passage requirements of heavy trucks
• Load capacity: compatible with LED traffic variable message signs, HD surveillance cameras, radars, ETC antennas, traffic signs and height limit warning boards
• Surface color: silver gray / light gray (other colors available upon customization)
• Application scenarios: expressways, urban express roads, national & provincial highways, park entrances, tunnel portals

4. Product Advantages

✅ Multi-functional integration: One gantry realizes height limit protection, road condition broadcasting, vehicle capture and ETC recognition simultaneously, reducing repeated pole installation and cutting project costs.

✅ High strength & durability: Truss steel structure with compression and wind resistance, suitable for all-weather outdoor environments including rain, snow, high temperature and coastal corrosive conditions.

✅ Non-standard customization: Span, vertical clearance and equipment layout can be customized based on road survey data, with supporting design drawings and foundation construction drawings provided.

✅ Convenient construction: Prefabricated in factory and hoisted directly on site to shorten construction period; simple maintenance in later stage for easy inspection of screens and monitoring equipment.

✅ Safety & compliance: Manufactured in strict accordance with design specifications for road traffic steel structures, meeting acceptance standards of road administration and traffic control projects, applicable to government procurement and bidding projects.

5. Application Scenarios

Main lines and ramps of expressways, urban arterial expressways, national and provincial trunk roads, tunnel entrances and main roads of large industrial parks. It is used for releasing congestion warnings, construction notices and speed limit prompts, as well as road height limit management, illegal vehicle capture and ETC toll identification.
